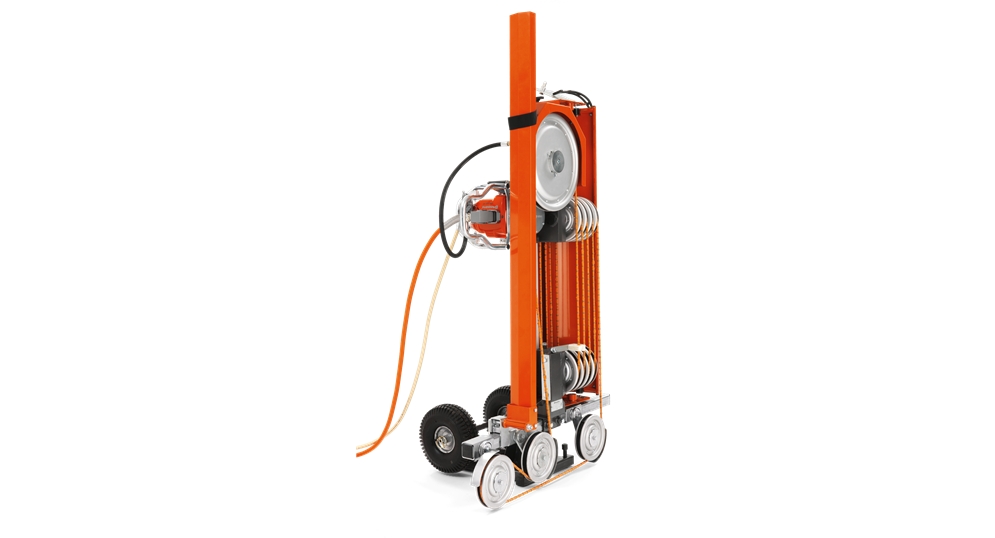

CS 10 |
|
|
The CS 10 is a very useful and efficient saw system,
thanks to many smart solutions. The saw is coupled to our electric wall saws WS
482 HF or WS 440 HF. It can be mounted on both sides of the track and direction
of the wire is reversible. You can saw both vertically and horizontally. Also,
there’s no need for water for dry cuts in cases when slurry is a concern.
|
Engine
|
|
Output
power with WS 482 HF and PP 480 HF
|
19 kW / 25
hp
|
|
Output
power with WS 440 HF and PP 440 HF
|
13 kW / 17
hp
|
|
Wire specs
|
|
Speed
|
0-1200 rpm
|
|
Wire speed
at 1200 rpm
|
24 m/s /
78.7 fts
|
|
Magazine
capacity
|
10 m /
32.8 feet
|
|
Wire
length, max/min
|
11.7/1.7 m
/ 38.4/5.6 feet
|
|
Dimensions
|
|
Column
height
|
1200 mm
|
|
Weight, WS
482 HF / WS 440 HF
|
138/135 kg
/ 304/297 lbs
|
|
|
|
|
|
|
|
|
